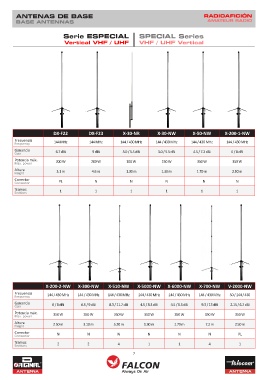

Page 7 - Catálogo antenas

ANTENAS DE BASE RADIOAFICIÓN
BASE ANTENNAS AMATEUR RADIO

Serie ESPECIAL SPECIAL Series
Vertical VHF / UHF VHF / UHF Vertical

DX-F22 DX-F23 X-30-NR X-30-NW X-50-NW X-200-1-NW
Frecuencia 144 MHz 144 MHz 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz
Frequency
Ganancia 6.7 dBi 9 dBi 3.0 / 5.5 dBi 3.0 / 5.5 dBi 4.5 / 7.2 dBi 6 / 8 dBi
Gain
Potencia máx. 200 W 200 W 100 W 150 W 350 W 350 W
Max. power
Altura 3.1 m 4.6 m 1.30 m 1.30 m 1.70 m 2.50 m
Height
Conector PL N N N N N
Connector
Tramos 1 1 1 1 1 1
Sections

X-200-2-NW X-300-NW X-510-NW X-5000-NW X-6000-NW X-700-NW V-2000-NW
Frecuencia 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz 144 / 430 MHz 50 / 144 / 430
Frequency
Ganancia 6 / 8 dBi 6.5 / 9 dBi 8.3 / 11.7 dBi 4.5 / 8.3 dBi 4.5 / 8.3 dBi 9.3 / 13 dBi 2.15 / 6.2 dBi
Gain
Potencia máx. 350 W 350 W 350 W 350 W 350 W 350 W 350 W
Max. power
Altura 2.50 m 3.10 m 5.20 m 1.30 m 1.70 m 7.2 m 2.50 m
Height
Conector N N N N N N PL
Connector
Tramos 2 2 4 1 1 4 1
Sections
7
