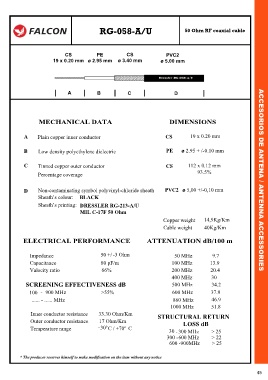

Page 45 - Catalogo CB

RG-058-A/U 50 Ohm RF coaxial cable

CS PE CS PVC2
19 x 0.20 mm ø 2.95 mm ø 3.40 mm ø 5.00 mm

A B C D

MECHANICAL DATA DIMENSIONS

A Plain copper inner conductor CS 19 x 0.20 mm

B Low density polyethylene dielectric PE ø 2.95 + / - 0.10 mm

C Tinned copper outer conductor 112 x 0.12 mm
CS

93.5%
Percentage coverage
ACCESORIOS DE ANTENA / ANTENNA ACCESSORIES
D Non-contaminating symbol polyvinyl-chloride sheath PVC2 ø 5,00 +/ -0,10 mm

BLACK
Sheath’s colour:

Sheath’s printing:

DRESSLER RG-213-A/U
MIL C-17F 50 Ohm
Copper weight 14,9Kg/Km
Cable weight 40Kg/Km

ELECTRICAL PERFORMANCE ATTENUATION dB/100 m

Impedance 50 +/ -3 Ohm 50 MHz. 9.7

Capacitance 80 pF/m 100 MHz 13.9
Valocity ratio 66% 200 MHz 20.4
400 MHz 30
SCREENING EFFECTIVENESS dB 500 MHz 34.2
100 - 900 MHz >55% 600 MHz 37.9
...... - ...... MHz 860 MHz 46.9
1000 MHz 51.8
Inner conductor resistance 33.30 Ohm/Km STRUCTURAL RETURN
Outer conductor resistance 17 Ohm/Km LOSS dB
Temperature range -30º C / +70º C 30 - 300 MHz > 25
300 -600 MHz > 22
600 -900MHz > 25

* The producer reserves himself to make modification on the item without any notice
