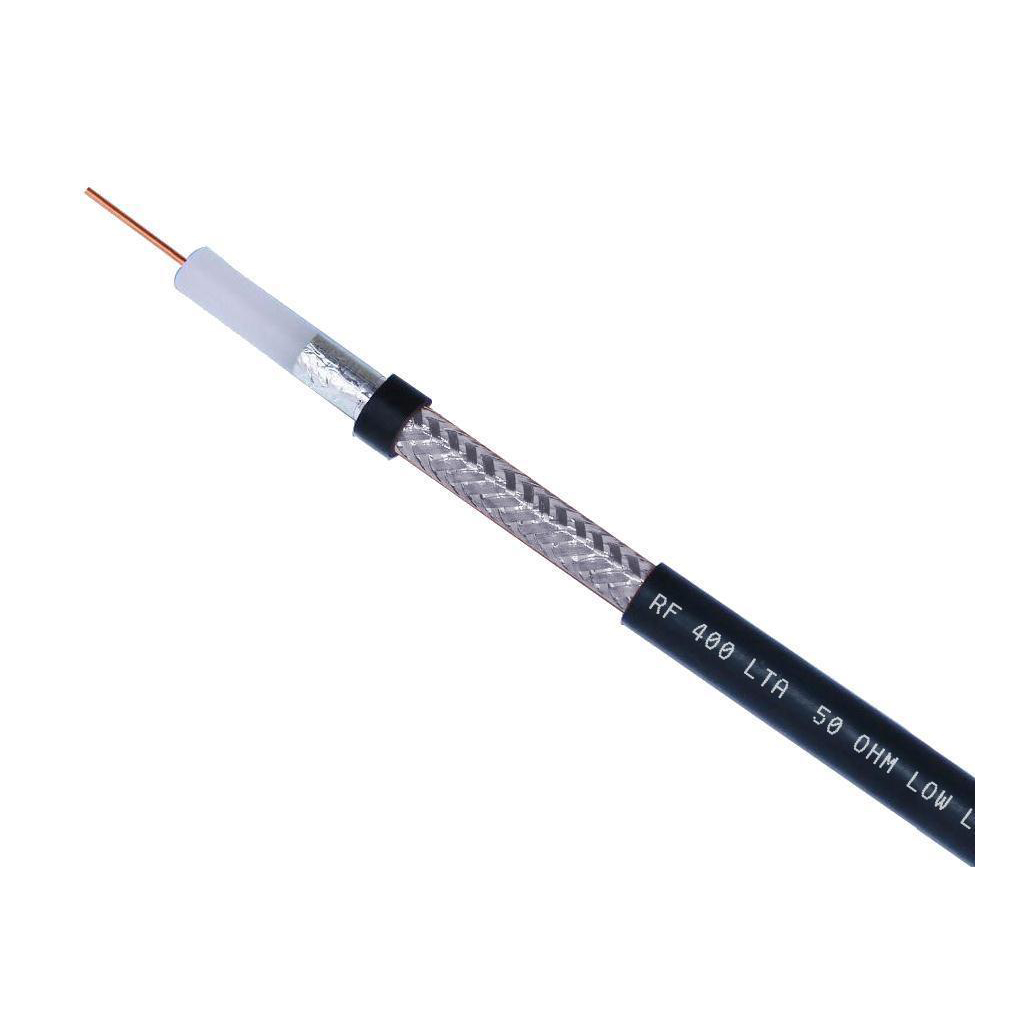

Low loss coaxial cable RF-400.
Low loss coaxial cable RF-400. 10.3 mm diameter.
Sold in rolls of 100 m.
Sold in rolls of 100 m.
REF: RF400LTA
Characteristics
Impedance: 50 Ω
Mesh: copper
Screen: aluminium
Driver: 1 x 2.7 mm copper.
Dielectric: Foam.
Speed ​​factor: 0.84
Rated capacity: 80 pF / m.
Freq. max. work: 6GHz
Dimensions (cond. / Dielectric / exterior): 2.7 / 7.25 / 10.3 mm.
Cover: PVC
Approx.: 13 kg/100m.
Bending radius: 75 mm.
Attenuation by 100m.
| 100 MHz | 3.6 dB. |
| 400 MHz | 7.9 dB. |
| 1300 MHz | 13.2 dB. |
